MBSH/55

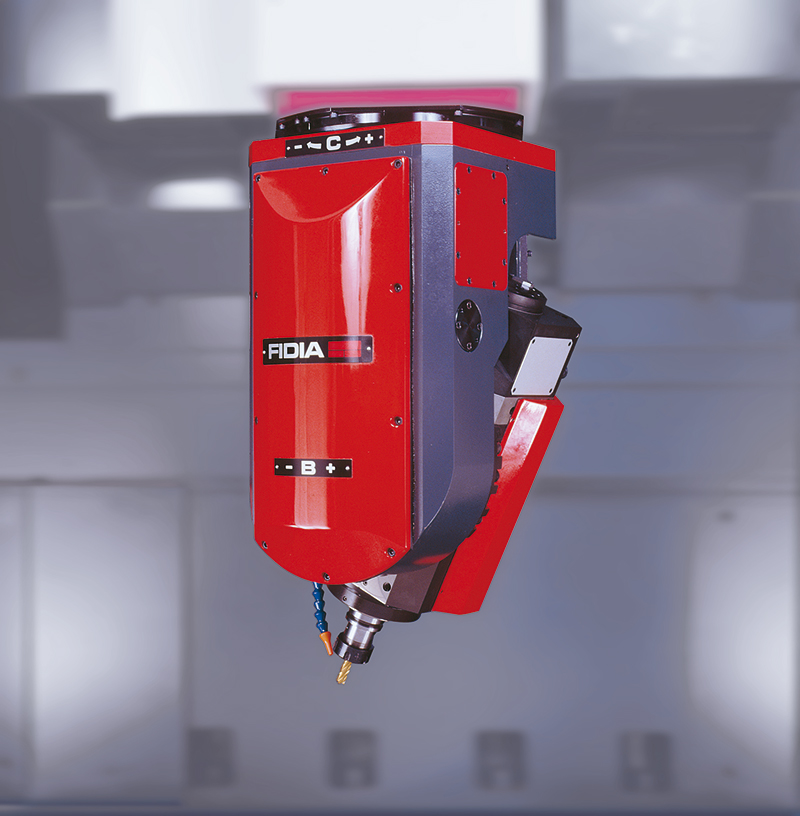

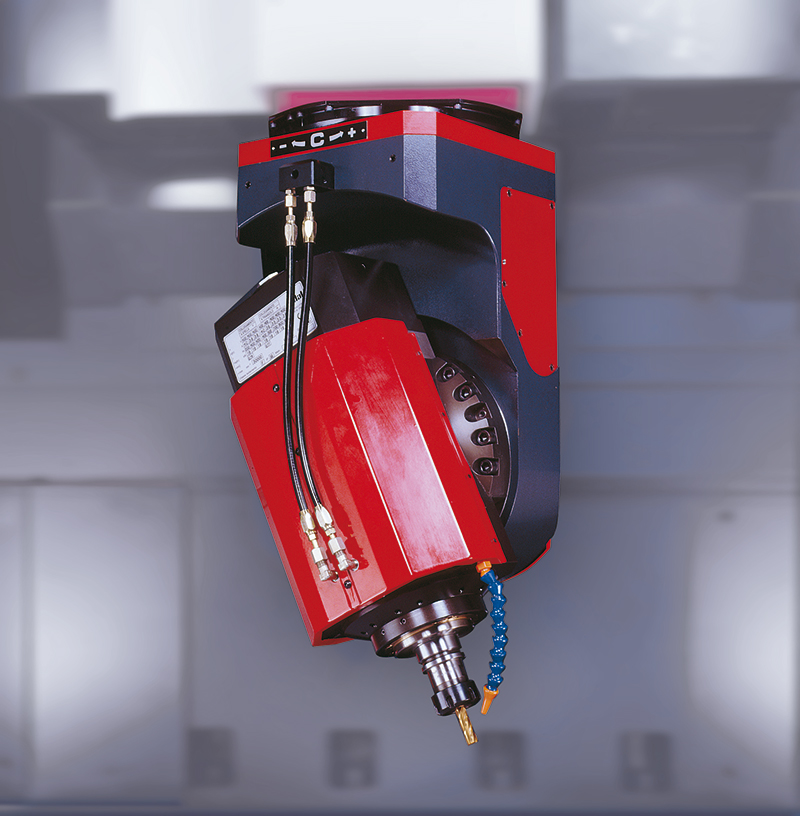

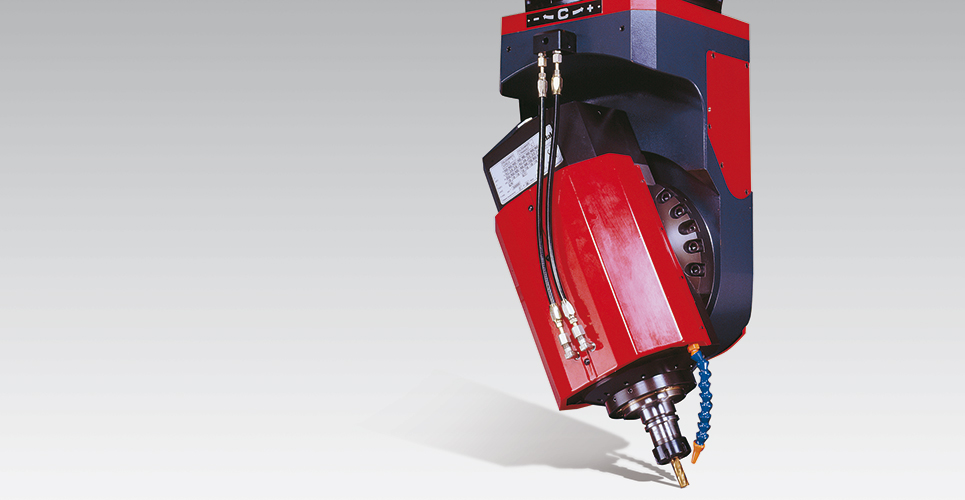

The MBSH/55 indexed bi-rotary head has been designed to provide medium-sized machines with a spindle that can be oriented and which has high stock removal capacity and high rpm. The head is compact and asymmetric for better penetration of deep dies and moulds.

Photo gallery

Technical specifications

MBSHFeatures
B axis travel-102º ÷ +24º
C axis travel-177º ÷ +180º
Max. speed milling spindle30000 1/min
Max. power22 kW
ToolholderHSK50E
Torque36 Nm
